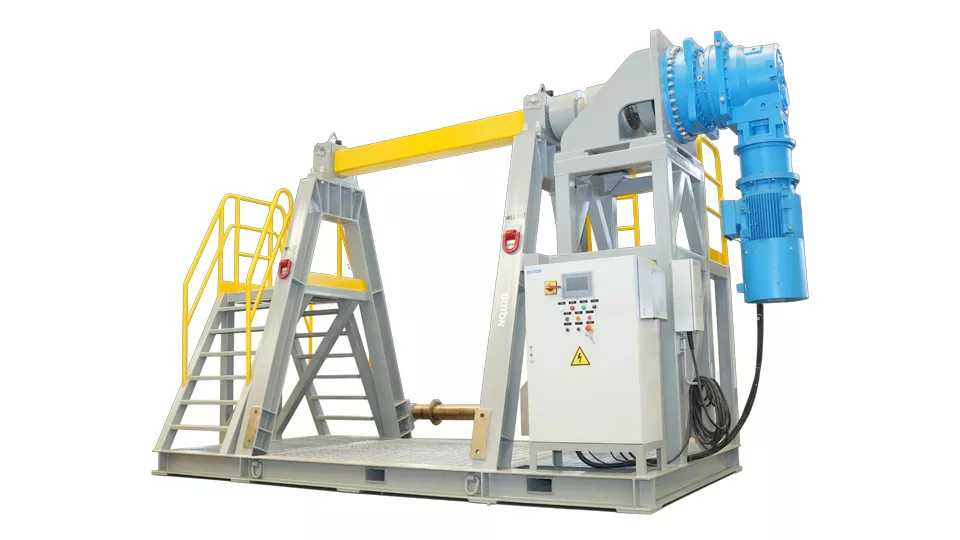

Ports, wharves, power plants, steel mills and other industries that use large conveyors often need to deal with large rolls of conveyor belts in the process of replacing conveyor belts or carrying out maintenance of conveyor belts. Traditional manual carrying or homemade simple belt rolling mechanisms often have low efficiencies, high labor intensity, and safety hazards. With the intensification of site competition, the traditional way can no longer be adapted to the high requirements of modern production.
Download Brochure
Lightweight structure makes the equipment easy to transport, move, and deploy on site.
Applicable to conveyor belts from 800 mm to 2200 mm, with a removable roller top to adapt to different belt widths.
Adjustable belt speed and automatic tensioning help keep the belt neatly arranged, without looseness or deviation.
Equipped with overload, deflection, monitoring and alarm protection, plus real-time belt length display and remote-control operation.
| Category | Parameters | Category | Parameters |
|---|---|---|---|
| Belt width | 800mm~2200mm | Motor power | 11kw（B2200 15kw） |
| Line speed of belt | 0.13~0.63m/s | Exterior Dimensions | （4965~6418）mm*3079mm*3000mm |
| Maximum diameter of belt | 5000mm | Machine weight | 11147~12230kg |
