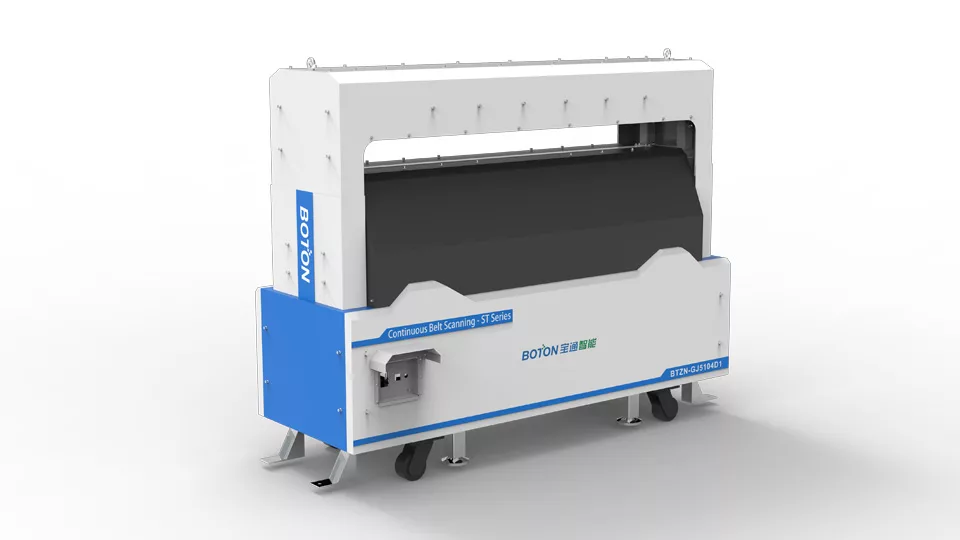

This system can timely detect abnormal abrasion of belt coverrubber, collect and record thickness data of belt cover rubberin real-time, accurately determine abnormal abrasionpositions, evaluate belt health status based on historicalabrasion data, and generate belt health diagnosis report.
Download Brochure
Output belt cover rubber abrasion curve and belt abrasion positioning simulation diagram in real time.
Detect abnormal change of cover rubber thickness automatically, locate the abnormal area, and immediately release an alarm.
Save thickness data, inquire historical thickness data and alarm information.
Has data analysis function, which can generate cover rubber thickness change trend and conveyor belt health diagnosis reports.
| Category | Parameters | Category | Parameters |
|---|---|---|---|
| Applicable belt speed | 0-10m/s | Maximum measured thickness | ≤ 40mm |
| Applicable belt width | 650-3000mm | Working temperature | -30 - 60℃ |
| Atmospheric pressure | 80-106Kpa | Storage temperature | -40 - 80℃ |
| Working power supply | 85-264VAC（customized） | Relative humidity | ≤ 95%RH（without condensation） |
| Continuous working time | 7×24h |
